¶ Klipper Status (2025-10-12)
¶ Overview
| What | Status |
|---|---|
| Klipper | WIP |
| Katapult for Klipper | WIP |
| Use stock display with klipper | WIP, almost complete |
| Flash Klipper from Display | WIP |
| Flash Klipper to Display via update | Planning |
| No modifications required | WIP |
| Orcas Slicer | WIP |
| Cura | Maybe |
¶ Detailed
| What | Status | Notes |
|---|---|---|
| Assisted bed leveling | Not started | Custom implementation needed |
| Assisted nozzle alignment | Not started | Custom implementation needed |
| CAN Bus | Not Planned | Dubious benefit, needs firmware support |
| Display | WIP | Bootloader not locked, OS is rooted, see own section |
| Endstops | Working | |
| Extruders | Working | |
| Fans | Working | Untested: Chamber Fan, Backside part cooler. |
| Filament Sensor | Open | Custom-Implementation needed in Klippy, Klipper does not work with ADCs |
| Firmware flash via display | Open | |
| Heater | Working | Extruder & bed |
| LED | Working | PWM dimmable |
| Microcontroller | Mostly working | Mostly basic things needed for printing. |
| Nozzle Diameter Detection | Not started/planned | Dubious benefit |
| Power Loss Recovery | Not started/planned | Really needed? |
| Scripts | WIP | Basic functionality working , only single extruder tested in slicer |
| Serial | Working | Back USB port with integrated CH340E working |
| Stepper & Drivers | Working | Working, Tuning needed, Y too noisy, 1.4A too much? |
| Temperature Sensors | Partially Working |
Working: Extruder, needs verification/calibration, bed Non-working/tested: MCU, “chamber” |
| TMC 2209 Drivers | Working | Standard, UART and Diag/StallGuard (not used as physical endstops exist) |
¶ Required Modifications

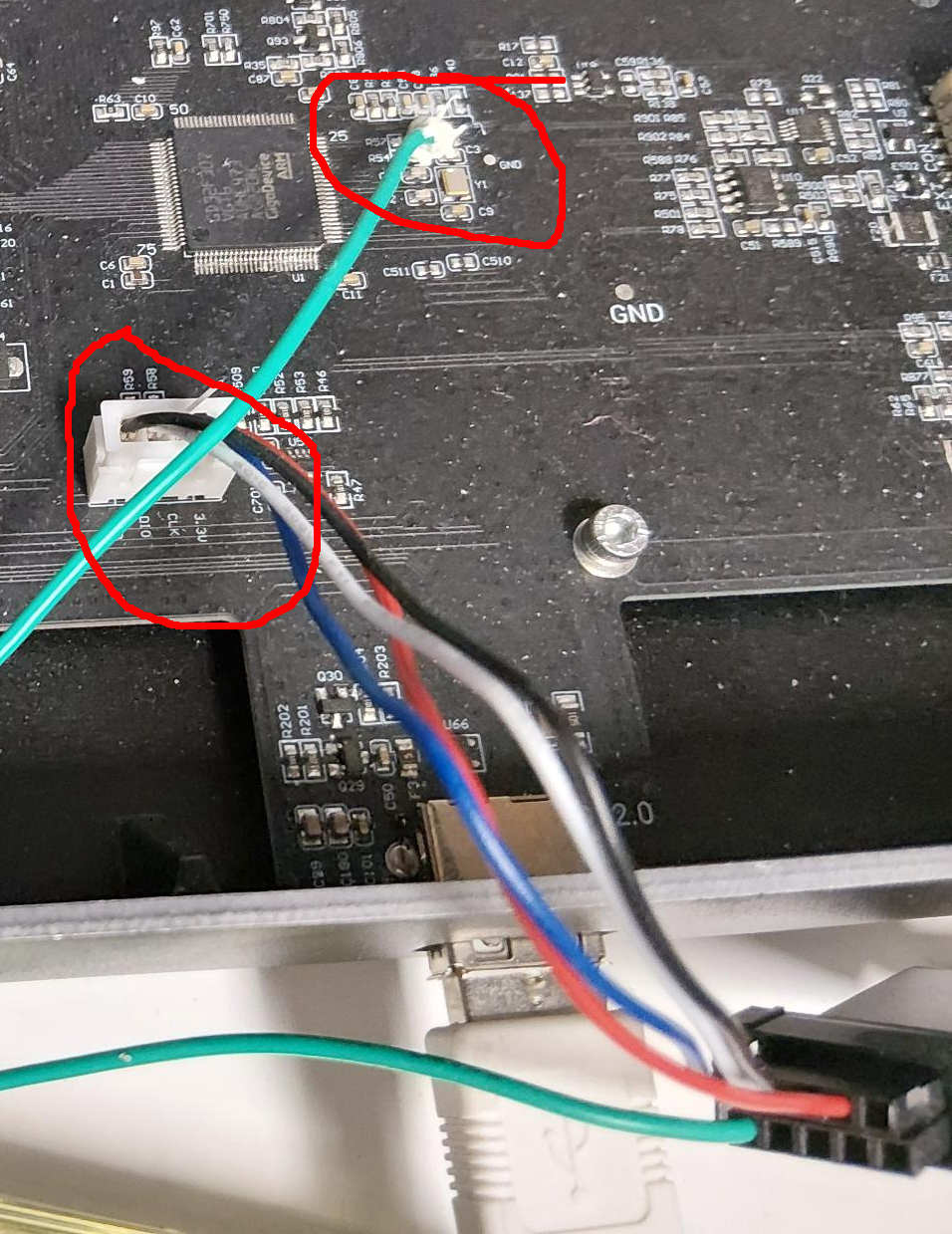

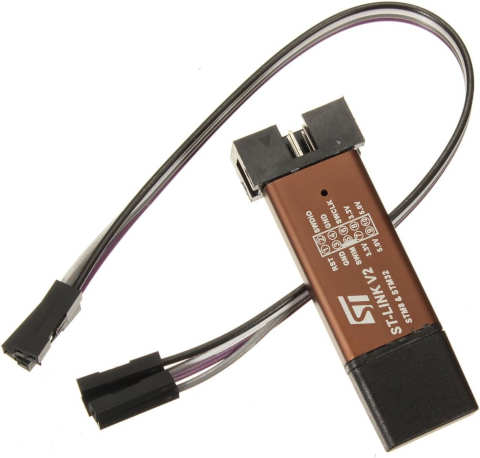

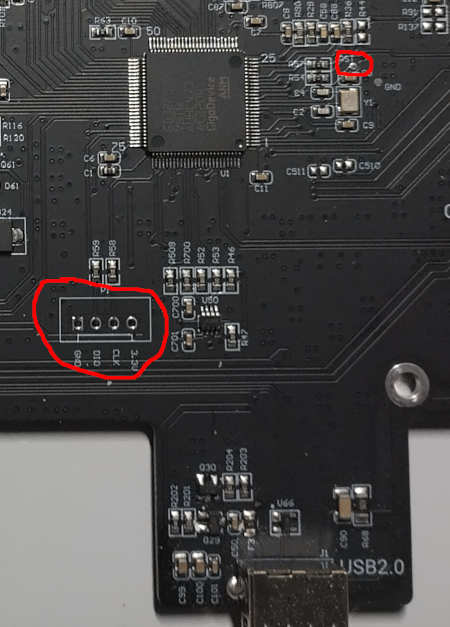

- Solder header/pins to debug port, requiring STLinkV2 (clone), Raspberry PI with OpenOCD via GPIO may work, too. Required for flashing
- Soldered reset jumper wire on reset test pad, may not be required
- External Klipper host via USB, most likely Raspberry PI, but anything may work
¶ Notes
- Marlin Firmware very messy
- Various STM32Fxxxx, various GD32Fxxxx & other HW sources and configurations mixed together. I doubt that this code is working at all (did not try it!)
- Hardcoded stuff despite Marlin offers configurations options for these
- Extruder temperature sensors readings are completely fucked up, added weird “type 25 thermistor". Voltage to temperature table seem not to match the mesaured voltage/temperature at all. Either completely wrong or are corrected somewhere in hidden in marlin firmware or display
- Based upon Marlin 2.0.9.1 (2021?)
- At lower power consumption (somewhere < 50 Watt), PSU fan is just clicking instead of spinning. Maybe broken PSU fan or low PWM duty cycle or low voltage for starting
- PSU fan blowing from/against printing chamber floor.
- “Chamber fan” (for the mainboard) at the back is probably useless.
- WTF? There is a RPC like protocol called SACP for communication between MCU and SOC, and an own event system in the firmware.
¶ Display
| What | Model | Documentation | Notes |
| Board | Quectel SC20-W (not - WL!) | 8GB Flash, 1GB RAM | |
| CPU | Qualcomm MSM8909 (ARM Cortex-A7) | ||
| Linux | Kernel 3.10.49 Qualcomm modified | Many firmware blobs | |
| Display |
¶ Status
| What | Status | Notes |
|---|---|---|
| Booting Linux | Works | lk2nd + kernel 6.12.1 https://github.com/msm8916-mainline |
| UART | Works | UART1 → MCU, UART0 → Debug, |
| USB | Works | Host/Device mode works, role switching |
| Display | Works | simpledrm with 24bpp currently, console is shown, Brightness control |
| Touchscreen | Works | |
| Bluetooth | Untested | Device starts, no testing |
| X11 | Works | Needed for KlipperScreen |
| WiFi | Works | Works stable, 2.4/5Ghz (no DFS), and WPA2 (not much more tested) |
| Full OS | Works | Armbian (Debian Trixie) works, MainsailOS works |
| Klipper | Works | works |
| Klipper Screen | Works | works |
| Flashing from Android | Open | |
| Camera | Not planned | May be feasible, but needs at least soldering or more hardware, USB cam possible |
¶ Description

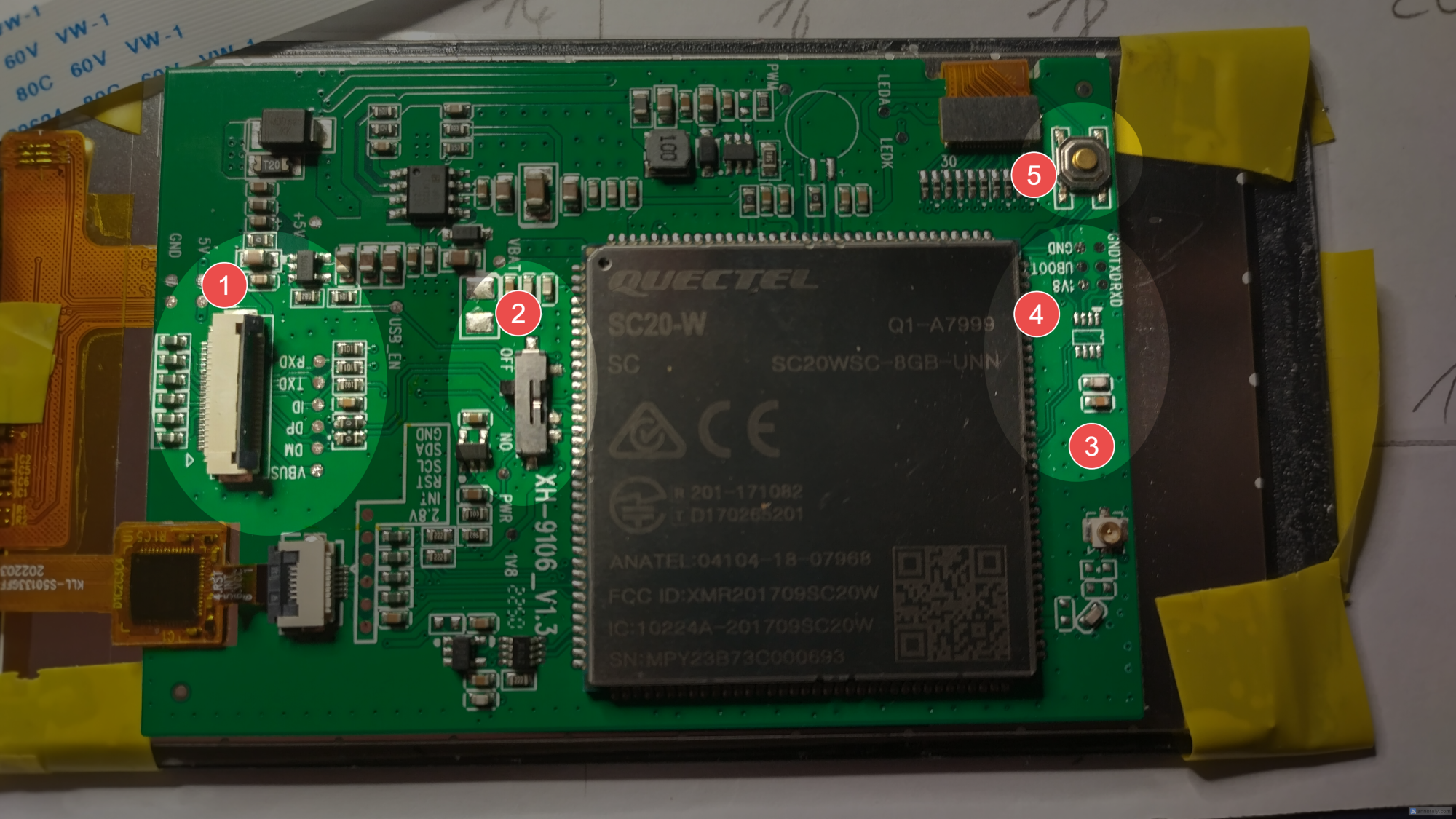

Picture of the backside of the Display PCB:
| No | Description |
|---|---|
| 1 |
FFC cable connector carrying:
|
| 2 | Switch for Device or Host mode, the ID pin is ignored, in Device mode, 5V must be provided by the remote device or the interface won't become active. On = Host mode (for USB sticks an so), Off = Device Mode, including ADB, Fastboot & EDL |
| 3 | Debug UART, for the Snapdragon it's the primary UART, but for the SC20 it's the secondary UART. Important: 1.8V only. Upper pin: TX, lower pin RX. I soldered cables for RX & TX directly onto the castellated pins of the SC20, and used a USB UART adapter with 1.8V support. |
| 4 | Unpopulated level shifter. The test pads above the field and the traces to the SC20 would be connected by a level shifter for 1.8V. Either solder a 1.8V compatible level shifter to the pads or use a 1.8V capable UART soldered to the SC20 or to the testpads and bridge the empty pads |
| 5 | EDL button. Keep pressed during boot to enter EDL mode. |
¶ TODO
- Remove debug code/settings
- Disable non-existing/working system components
- Try USART DMA again
- Newer Linux kernel
- Remove appended DT & Initrd
- fix extlinux boot addresses in lk2nd, remove force addresses
¶ Notes
Mine:
- CPU Governor set to performance, lower latency, and only 5V * 30mA = 0.15W higher idle consumption
Original
- Fastboot is very basic, only few commands work
- ADB works out of the box
- OS is rooted, just use su command
- Switch on Board for Host/Device mode
- In Device mode, board may not power up when VBUS is supplied, just disconnect for a second during a reboot
- Same when not visible to Host, just reconnect the cable
- USB port routed to Snapmaker J1 front USB port
- UART1/serial (5V/TTL ) connected to J1 MCU, can be used for debugging
- Powered via 5 Volt from J1 mainboard
- Important debug output is sent to UART2 which is unconnected and needs soldering, 1,8V signal level or you will fry it, there is an unpopulated level shifter connecting test pads to the SC20.
- System is completely unlocked, just do adb reboot edl and you can flash it, dump an image, etc. So almost unbrickable. There's emergency button on the mainboard → https://github.com/bkerler/edl
- Power regulator configuration for the WiFi chip is wrong. The chip is a wcn3660, but the power config says wcn3620 (not 5GHz capable) or wcn3680 (not officially supported by msm8909)
$ lsusb
Bus 001 Device 011: ID 05c6:9008 Qualcomm, Inc. Gobi Wireless Modem (QDL mode)
# ./edl
Qualcomm Sahara / Firehose Client V3.62 (c) B.Kerler 2018-2025.1
main - Trying with no loader given ...
main - Waiting for the device
main - Device detected :)
sahara - Protocol version: 2, Version supported: 1
main - Mode detected: sahara
sahara -
Version 0x2
------------------------
HWID: 0x009600e100000000 (MSM_ID:0x009600e1,OEM_ID:0x0000,MODEL_ID:0x0000)
CPU detected: "MSM8909"
PK_HASH: 0xcc3153a80293939b90d02d3bf8b23e0292e452fef662c74998421adad42a380f
Serial: 0x23a30b59
sahara - Possibly unfused device detected, so any loader should be fine...
sahara - Trying loader: /root/edl/edlclient/../Loaders/qualcomm/model_generic/msm8909/009600e100000000_cc3153a8029393 9b_fhprg_peek.bin
sahara - Protocol version: 2, Version supported: 1
l# ./edl printgpt
Qualcomm Sahara / Firehose Client V3.62 (c) B.Kerler 2018-2025.
main - Trying with no loader given ...
main - Waiting for the device
main - Device detected :)
main - Mode detected: firehose
Parsing Lun 0:
GPT Table:
-------------
modem: Offset 0x0000000004000000, Length 0x0000000004000000, Flags 0x1000000000000000, UUID 256e5070-df22-7687-dfc9-d91b65d7e5ea, Type EFI_BASIC_DATA, Active False
sbl1: Offset 0x0000000008000000, Length 0x0000000000080000, Flags 0x0000000000000000, UUID 5b461e03-821f-8e01-c6a0-58fe06f5b9d8, Type 0xdea0ba2c, Active False
sbl1bak: Offset 0x0000000008080000, Length 0x0000000000080000, Flags 0x0000000000000000, UUID c435bbde-9bf4-876b-267d-e90746ec113c, Type 0xdea0ba2c, Active False
aboot: Offset 0x0000000008100000, Length 0x0000000000100000, Flags 0x0000000000000000, UUID 1563b682-0972-1e85-977d-773082bbf308, Type 0x400ffdcd, Active False
abootbak: Offset 0x0000000008200000, Length 0x0000000000100000, Flags 0x0000000000000000, UUID a06d7d6b-c56a-f9d6-bbed-f6b1627a0054, Type 0x400ffdcd, Active False
rpm: Offset 0x0000000008300000, Length 0x0000000000080000, Flags 0x0000000000000000, UUID 9da4370e-0bf4-1d72-6d4c-1e9feadcc2cd, Type 0x98df793, Active False
rpmbak: Offset 0x0000000008380000, Length 0x0000000000080000, Flags 0x0000000000000000, UUID be7947bf-20eb-d482-20e8-1015a339cdda, Type 0x98df793, Active False
tz: Offset 0x0000000008400000, Length 0x00000000000c0000, Flags 0x0000000000000000, UUID e22aaf3d-9a4c-5f83-f013-49962b151d32, Type 0xa053aa7f, Active False
tzbak: Offset 0x00000000084c0000, Length 0x00000000000c0000, Flags 0x0000000000000000, UUID 7cad31b2-fee0-788d-de29-c385ef7f8f10, Type 0xa053aa7f, Active False
pad: Offset 0x0000000008580000, Length 0x0000000000100000, Flags 0x0000000000000000, UUID e8628193-27fb-d671-111c-dfb2f7c8ef3c, Type EFI_BASIC_DATA, Active False
modemst1: Offset 0x0000000008680000, Length 0x0000000000180000, Flags 0x0000000000000000, UUID 5378dca5-f292-ee65-c06b-54430f26f690, Type 0xebbeadaf, Active False
modemst2: Offset 0x0000000008800000, Length 0x0000000000180000, Flags 0x0000000000000000, UUID 255d5e3e-fb44-0cf0-f008-12b8675744d0, Type 0xa288b1f, Active False
misc: Offset 0x0000000008980000, Length 0x0000000000100000, Flags 0x0000000000000000, UUID e159b334-c883-df73-33d0-30ce074f598f, Type 0x82acc91f, Active False
fsc: Offset 0x0000000008a80000, Length 0x0000000000000400, Flags 0x0000000000000000, UUID 3318f4af-c4d7-8677-cd3a-b846aa7c3963, Type 0x57b90a16, Active False
ssd: Offset 0x0000000008a80400, Length 0x0000000000002000, Flags 0x0000000000000000, UUID b6d22a25-25e5-3dbd-7bef-c117841908ee, Type 0x2c86e742, Active False
splash: Offset 0x0000000008a82400, Length 0x0000000006400000, Flags 0x0000000000000000, UUID 73a4b5cb-8830-4ac8-5d75-4057f866d92d, Type 0x20117f86, Active False
DDR: Offset 0x0000000010000000, Length 0x0000000000008000, Flags 0x1000000000000000, UUID afe07d78-bdf9-199f-8a75-3a47ccf167ae, Type 0x20a0c19c, Active False
fsg: Offset 0x0000000010008000, Length 0x0000000000180000, Flags 0x1000000000000000, UUID 8a6b8ef3-903e-e0de-e7e6-68e27536c9bb, Type 0x638ff8e2, Active False
sec: Offset 0x0000000010188000, Length 0x0000000000004000, Flags 0x1000000000000000, UUID 423e4b4f-331e-f021-a5f5-666c10356628, Type 0x303e6ac3, Active False
boot: Offset 0x000000001018c000, Length 0x0000000002000000, Flags 0x1000000000000000, UUID d3fc79cf-6307-7a9b-4bd1-d1183bce500b, Type 0x20117f86, Active False
system: Offset 0x000000001218c000, Length 0x0000000060000400, Flags 0x1000000000000000, UUID 91cd5cb5-69e1-b01f-6e13-2ce4394f1652, Type 0x97d7b011, Active False
persist: Offset 0x000000007218c400, Length 0x0000000002000000, Flags 0x1000000000000000, UUID 2336fb1a-136d-dd79-ac55-0055cf5f0339, Type 0x6c95e238, Active False
cache: Offset 0x000000007418c400, Length 0x0000000010000000, Flags 0x1000000000000000, UUID ccab3a1c-4c2b-deda-2a37-87f116bb70c6, Type 0x5594c694, Active False
recovery: Offset 0x000000008418c400, Length 0x0000000002000000, Flags 0x1000000000000000, UUID a7126d09-5099-a978-9e90-de926331a132, Type 0x9d72d4e4, Active False
devinfo: Offset 0x000000008618c400, Length 0x0000000000100000, Flags 0x1000000000000000, UUID dd328e16-c458-9792-ed5b-101ae27f038d, Type 0x1b81e7e6, Active False
keystore: Offset 0x0000000088000000, Length 0x0000000000080000, Flags 0x0000000000000000, UUID b5d66cec-21ce-3b6c-a137-925a4f467c6f, Type 0xde7d4029, Active False
oem: Offset 0x0000000088080000, Length 0x0000000004000000, Flags 0x0000000000000000, UUID e81d22e7-4b6d-6ce4-fbd4-1cf093f5aa3b, Type 0x7db6ac55, Active False
config: Offset 0x000000008c080000, Length 0x0000000000080000, Flags 0x0000000000000000, UUID 1124d49b-8842-2ea8-528c-523f36cf2a92, Type 0x91b72d4d, Active False
reserve1: Offset 0x000000008c100000, Length 0x0000000008000000, Flags 0x0000000000000000, UUID e4d674fc-a706-8ba5-ea78-209772433b6b, Type 0x7db6ac55, Active False
reserve2: Offset 0x0000000094100000, Length 0x0000000000a00000, Flags 0x0000000000000000, UUID da928cd5-ed59-bb81-7378-c82e7680aae4, Type 0x7db6ac55, Active False
reserve3: Offset 0x0000000094b00000, Length 0x0000000000a00000, Flags 0x0000000000000000, UUID 55b98923-2d53-234e-70aa-c33f85baade0, Type 0x7db6ac55, Active False
reserve4: Offset 0x0000000095500000, Length 0x0000000001000000, Flags 0x0000000000000000, UUID 77cf2096-31bb-7773-6a8c-47daea1dd426, Type 0x7db6ac55, Active False
userdata: Offset 0x0000000096500000, Length 0x000000013bafbe00, Flags 0x0000000000000000, UUID 332d0be5-2808-8293-1886-0ddc13de4b18, Type 0x1b81e7e6, Active False
Total disk size:0x00000001d2000000, sectors:0x0000000000e90000
